ArcGIS Web Applications: Overview, Common Issues, Solutions & Best Practices

Introduction

---

ArcGIS web applications are essential tools for organizations seeking to visualize, analyze, and share spatial data interactively. Two primary platforms, ArcGIS Experience Builder and Web AppBuilder offer powerful, flexible solutions for building these web apps. However, users frequently encounter challenges during configuration and deployment. In this guide, we will try to summarize key troubleshooting workflows, common errors, and best practices, drawing from documentation and real-world cases.

Understanding ArcGIS Web Applications: Experience Builder and Web AppBuilder

---

ArcGIS Experience Builder enables users to create unique web experiences with flexible layouts, interactive widgets, and support for both 2D and 3D data. It offers drag-and-drop tools, responsive design, and the ability to build multi-page apps, making it ideal for modern, mobile-friendly web applications. Additionally, express mode allows for quick setup focused on essential features, while advanced options support custom widgets and templates.

ArcGIS Web AppBuilder, on the other hand, is a WYSIWYG (What-You-See-Is-What-You-Get) platform for building HTML and JavaScript apps without coding. It provides ready-to-use widgets, configurable themes, and supports both 2D and 3D maps.

The key differences between both tools is summarized into the below table. There are more features I could have covered but as previously stated THIS IS JUST A GLIMPSE of something greater.

Building and Troubleshooting Workflows

---

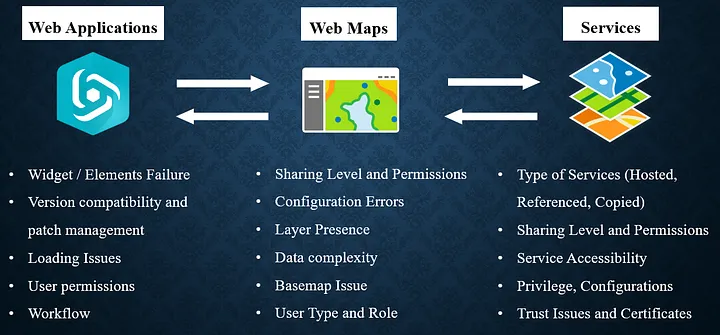

Understanding how Web Applications are constructed from the ground up is essential when troubleshooting ArcGIS-based environments. This foundational knowledge enables a more effective approach and optimal use of available resources. Consequently, the figure below highlights what I refer to as key checkpoints at each stage from services, through web maps, to web applications.

From left to right, the diagram illustrates the troubleshooting workflow: starting with the web application, then moving to the associated web map(s), and finally examining the layers or services that compose those web maps.

Conversely, from right to left, it illustrates the building workflow, showing how Web Applications are developed beginning at the services level, progressing to the web map, and culminating in the final application.

Remember that certain factors such as permissions, sharing settings, user types, and roles apply across all levels. Therefore, it is important to consider these elements throughout your troubleshooting process.

Guide to Common Errors: Causes, Workarounds, and Relevant Knowledge Articles

---

Below is a list of frequent errors encountered when working with ArcGIS Experience Builder, along with Knowledge Base articles highlighting likely causes, and recommended solutions. This will be slightly different compared to the other guides as we will highlight main causes and plausible solutions for each error. However, it’s crucial to mention the need of exploring the knowledge article to get a clear understanding of the workflow.

Error 1: Creating Map Failed

---

Possible Causes

• Inappropriate sharing level of the map from Portal for ArcGIS
• Broken or corrupted ArcGIS Experience Builder
• Web map is corrupted, broken, or deleted and no longer exists from the source.

Possible Solutions

• Change the sharing level of the web map (Organization/Public)
• STEPS: ArcGIS Portal → Content → Select Web Map → Edit Sharing → Set to Organization or Public
• Replace the Web map in ArcGIS Experience Builder
• STEPS: Experience Builder → Open App → Select Map widget → Content → Replace Web Map → Save → Preview / Publish
• Replace the Map widget in ArcGIS Experience Builder
• STEPS: Experience Builder → Delete existing Map widget → Insert new Map widget → Configure with desired Web Map → Save → Preview / Publish
• Replace the Map widget in ArcGIS Experience Builder
• STEPS: Experience Builder → Delete existing Map widget → Insert new Map widget → Configure with desired Web Map → Save → Preview / Publish
• Ensure all data sources are properly bound and loaded for custom widget
• STEPS: ArcGIS Portal → Content→ Item details page →Settings Feature layer (hosted) or Feature layer (hosted, view) →Enable editing → Check keep track of changes to the data (add, update, delete features) → Select the desired editing capabilities → Save
• Verify data source connections in widget settings
• STEPS: Confirm all layers load correctly → Test in Preview mode

Error 2: Unable to toggle the visibility of the map layers in the Map Layers widget

---

Possible Causes

• The “Interact with a Map widget” option is not selected
• The “Toggle layer visibility” options is not enabled

Effective Solutions

• Select and enable the necessary options in the Map Layers Widgets (Interact with a Map widget, toggle layer visibility)
• STEPS: Insert widget → Map Layers → Content → Select Interact with a Map widget (source) → Options, Toggle layer visibility → Save / Preview / Publish
• User the Map Widget as the source of the Map layers widget
• STEPS: Insert widget → Map → Select or configure your map (Source) then Insert widget → Map Layers → Open Map Layers widget settings → Set Source to Interact with a Map widget → Choose the Map widget you added → Customize layers and enable desired options (optional) → Save → Preview / Publish
• Save and publish changes after enabling options.

Error 3: No editable layers found

---

Possible Root Causes

• The layers specified in the widget are not editable
• The user does not have the appropriate role for editing a layer (viewer role)

Recommended Fixes

• Allow edits on all the feature layers.
• STEPS: ArcGIS Portal → Content→ Item details page →Settings Feature layer (hosted) or Feature layer (hosted, view) →Enable editing → Check keep track of changes to the data (add, update, delete features) → Select the desired editing capabilities → Save
• With an admin account, change the user’s role to one with editing privileges (e.g., Viewer to Editor)
• STEPS: ArcGIS Portal → Organization → Members tab →Search for Member → Click Role and select appropriate role.
• Test the Editor widget after making changes.

Other Relevant Causes & Tips for Troubleshooting

---

• Widget-specific challenges can be tough as they call for a range of techniques and persistence.
• Ensure all web maps and feature services are shared with the intended audience and not restricted by organization or group settings.
• Check for version mismatches between custom widgets and the Experience Builder framework.
• For custom widgets, verify that the manifest URL is correct and the server is listed in allowed proxy hosts.
• Update browsers and clear cache to resolve client-side issues.

Best Practices for Reliable ArcGIS WebApps

---

Best practices are crucial for maintaining the stability and reliability of ArcGIS web applications. These guidelines help to prevent common issues, enhance performance, and ensure a seamless user experience. Below are some key best practices to consider when working with ArcGIS web applications:

• Regularly review sharing settings for all data sources and apps.
• Test apps in multiple browsers and devices to ensure compatibility. Incognito mode is also something worth checking as we there are browser specific issues out there.
• Document configuration changes and maintain version control.
• Monitor Esri’s release notes for updates, bug fixes, and breaking changes.
• Use roles and privileges appropriately to control editing and data access.
• Leverage Esri’s Knowledge Base and community forums for troubleshooting and peer support.
• Always save snapshot and back up configurations before major updates or migrations.

Conclusion

---

ArcGIS Experience Builder and Web AppBuilder are robust platforms for building interactive and responsive web mapping applications. By following structured troubleshooting workflows, understanding common errors, and applying best practices, you can minimize downtime as well as performance issue, subsequently deliver reliable, user-friendly web apps.
